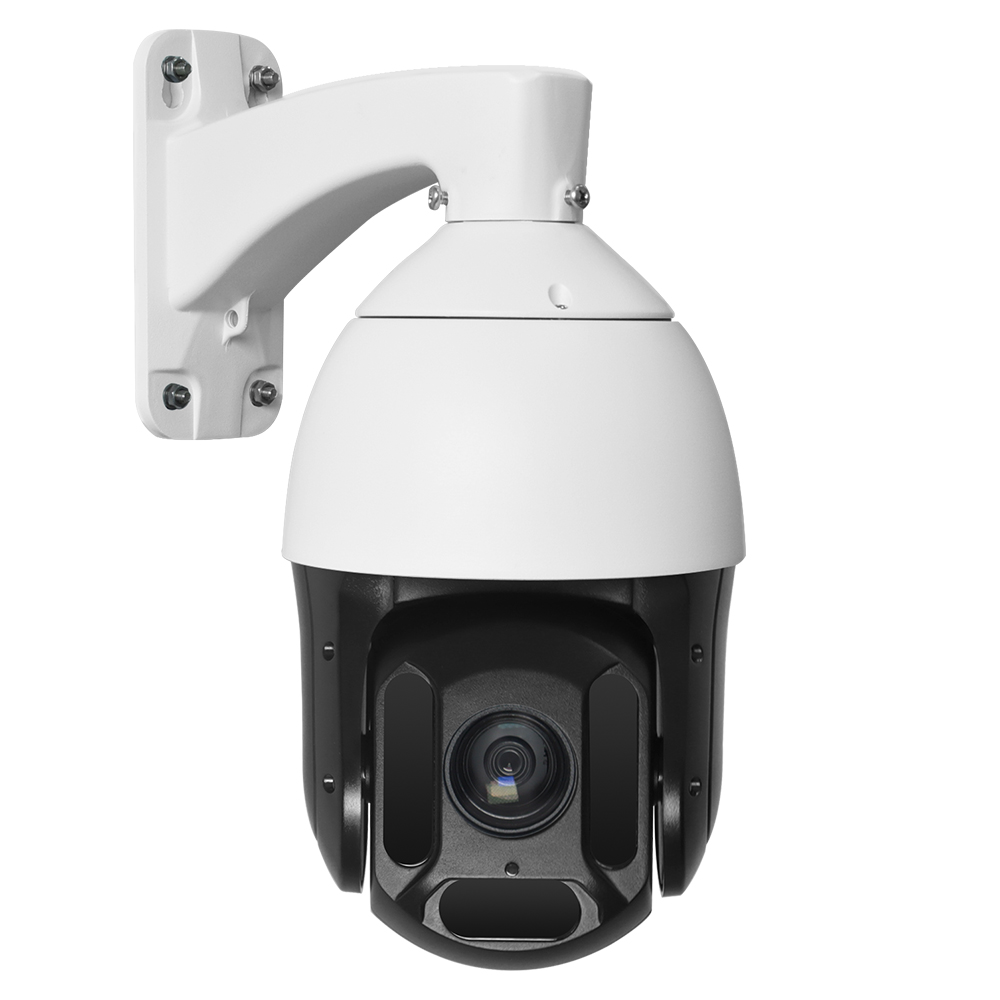

ZP68S-4 33X 1080P Starlight PTZ camera 4 in 1

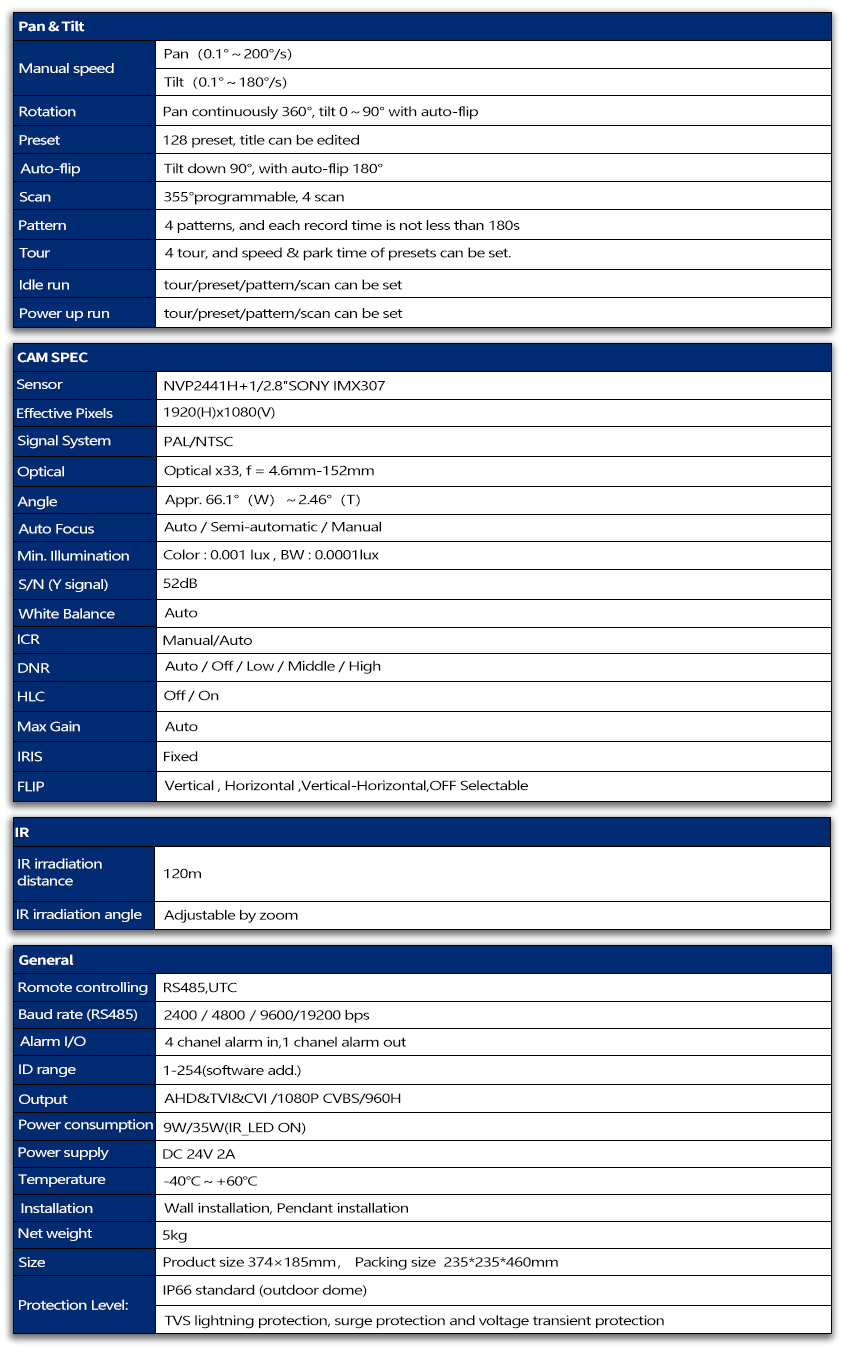

| Pan & Tilt | |
| Manual speed | Pan（0.1°～200°/s） |
| Tilt（0.1°～180°/s） | |
| Rotation | Pan continuously 360°, tilt 0～90° with auto-flip |
| Preset | 128 preset, title can be edited |
| Auto-flip | Tilt down 90°, with auto-flip 180° |
| Scan | 355°programmable, 4 scan |
| Pattern | 4 patterns, and each record time is not less than 180s |
| Tour | 4 tour, and speed & park time of presets can be set. |
| Idle run | tour/preset/pattern/scan can be set |
| Power up run | tour/preset/pattern/scan can be set |
| CAM SPEC | |
| sensor | 1/2.8"Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| OPTICS | Optical x33, f = 4.6mm-152mm |
| Angle | Appr. 66.1°（W）～2.46°（T） |
| Auto Focus | Auto / Semi-automatic / Manual |
| Min. Illumination | Color : 0.001 lux , BW : 0.0001lux |
| S/N (Y signal) | 52dB |
| White Balance | Auto |
| ICR | Manual/Auto |
| DNR | Auto / Off / Low / Middle / High |
| HLC | Off / On |
| Max Gain | Auto |
| IRIS | Auto |
| FLIP | Vertical , Horizontal ,Vertical-Horizontal,OFF Selectable |
| IR | |
| IR irradiation distance | 150m |
| IR irradiation angle | Adjustable by zoom |
| General | |
| Romote controlling | RS485,UTC |
| Baud rate (RS485) | 2400／4800／9600/19200 bps |
| ID range | 1-254(software add.) |
| Output | AHD&TVI&CVI /1080P CVBS/960H |
| Power consumption | 9W/40W(IR_LED ON) |
| Power supply | DC 24V 2A |
| Temperature | -40℃～+60℃ |
| Installation | Wall /Corner/Pole/Pendant installation |
| Net weight | 6.5kg |
| Size | Product size 336.5×230mm， Packing size 300×300×460mm |
| Protection Level: | IP66 standard (outdoor dome) |
| TVS lightning protection, surge protection and voltage transient protection | |
